BS 957 : 2008
Choosing Rhopoint Metrology for feeler gauge calibration means investing in precision and reliability. We offer ISO 17025 certified calibration therefore you can trust us to deliver excellence.
Feeler GaugeTo Top | ||||
| UKAS Calibration for Feeler Gauge Sets – Per Blade | UKAS |
| ||
If you haven’t found the calibration you require or need some further assistance with your requirement, contact us using this form and we can find the solution you are looking for.ย
Range covered: 0.03mm to 1.00mm and 0.0015″ to 0.025″
There are no accuracy grades for feeler gauges. The most common material is hardened steel.ย International standards reference deviation from the nominal thickness and local thickness variation.
An example tolerance would be:
Nominal: 0.03mm (+ 0.004mm) and a local thickness variation (0.004 mm).

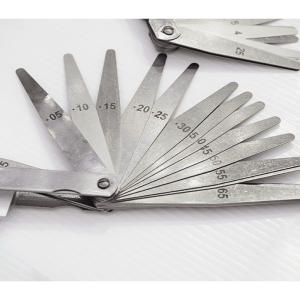

Feeler gauges are normally used in engineering applications where a small gap needs to be measured or set.

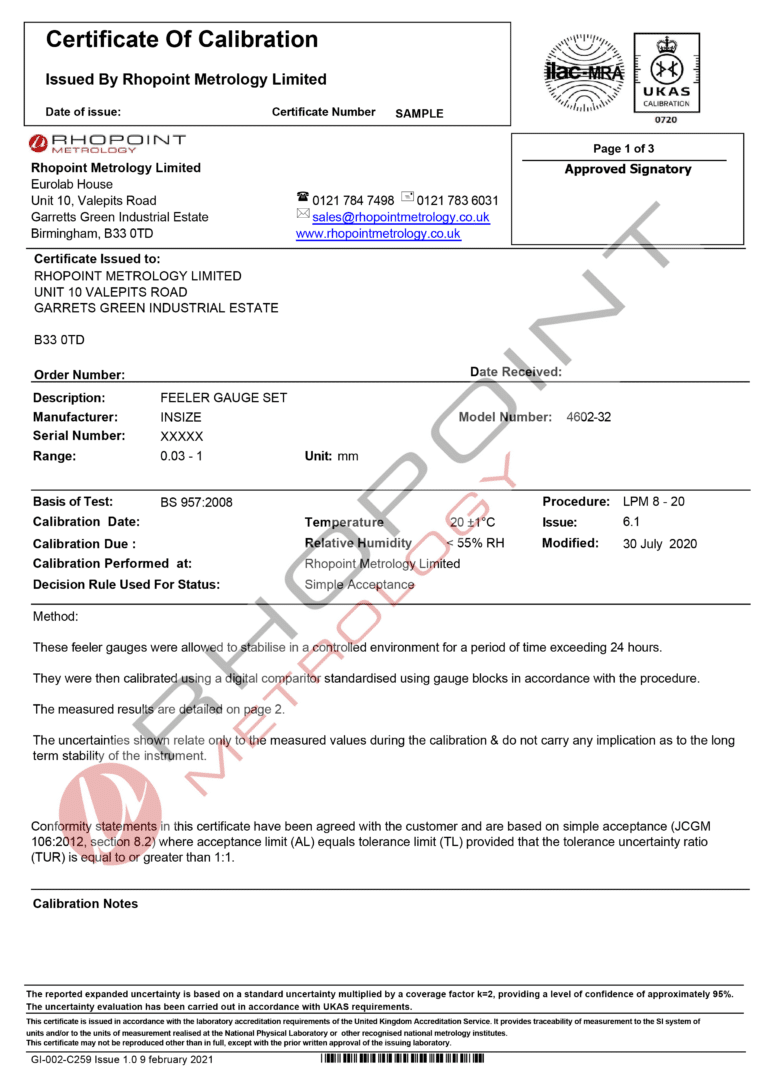

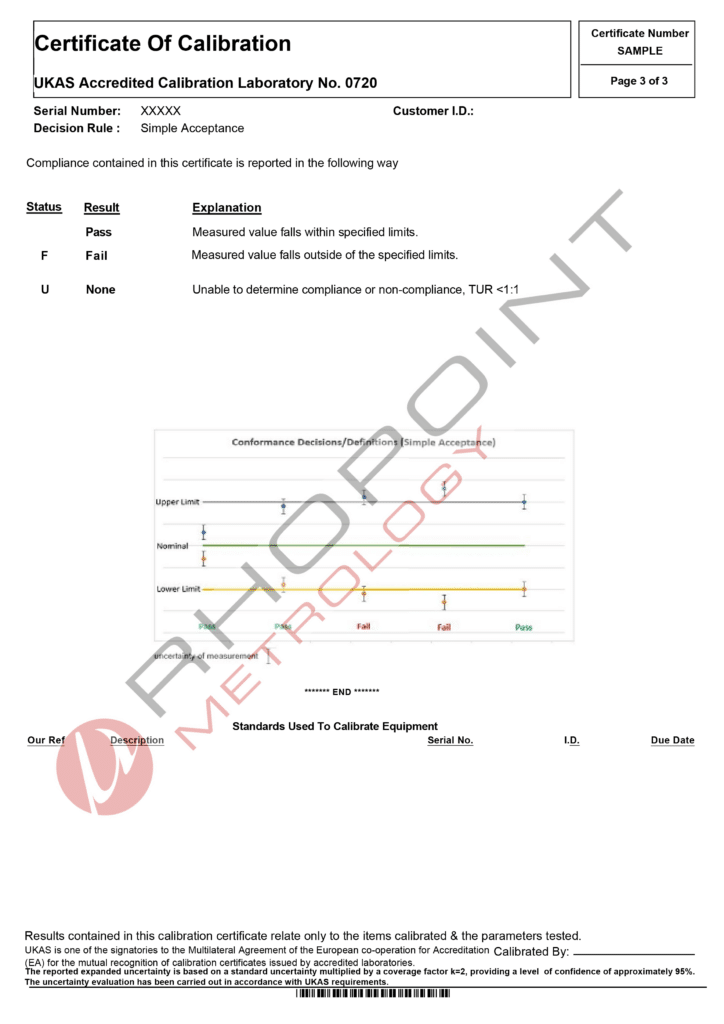

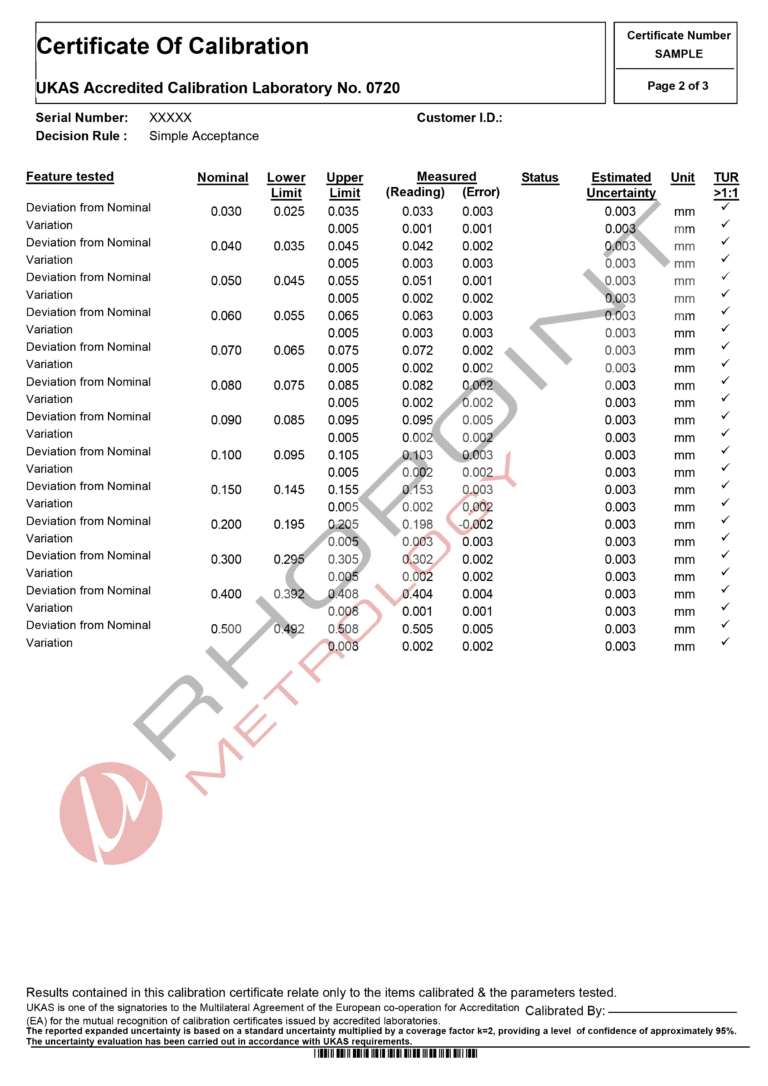

Below is a layout for a typical in-house calibration for a feeler gauge.
All of our Laboratories are accredited to provide UKAS & Traceable calibrations to all the relevant standards giving you peace of mind.
Make consistent, accurate and reliable measurements
Ensure longevity of the measuring instruments
Ensure safety in critical applications such as medical and aerospace
