SKUUnitRange (mm)Range (inch)FeaturePrice

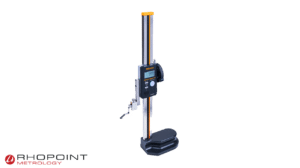

570-402Metric0 - 300N/AWith handwheel£762.00

Add to Basket

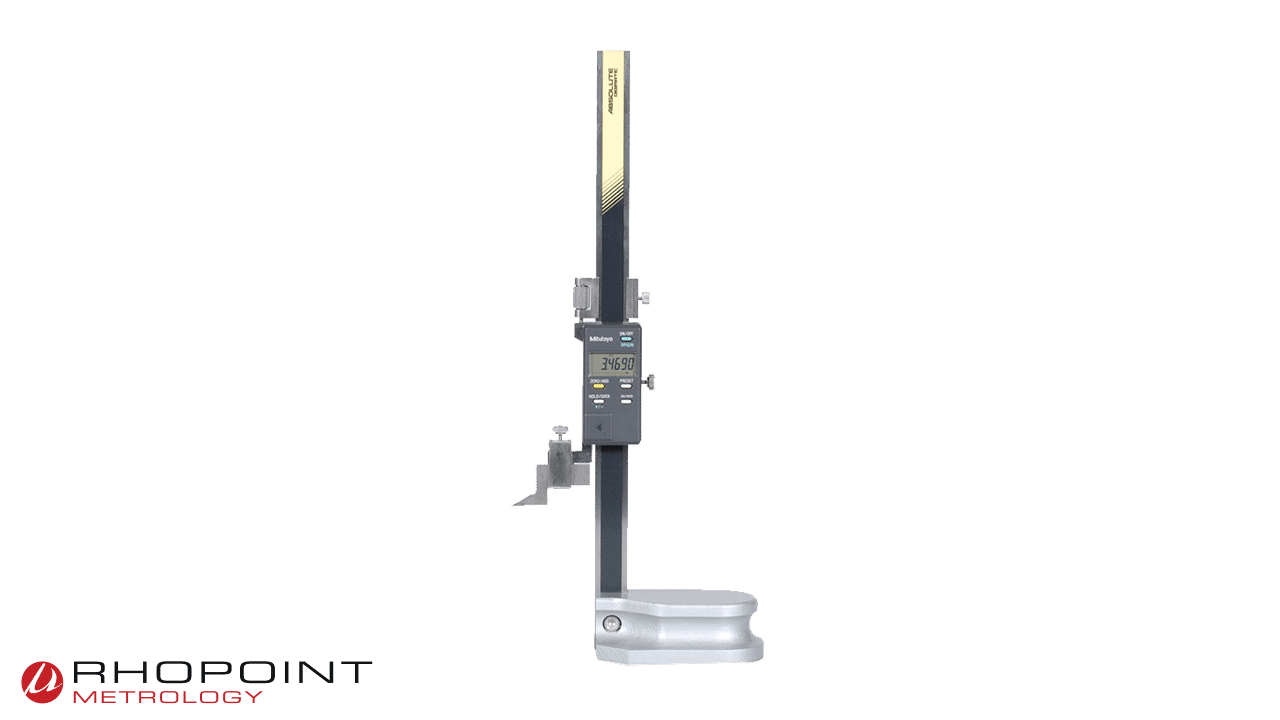

570-244Inch/Metric0 - 2000 - 8Without handwheel£806.00

Add to Basket

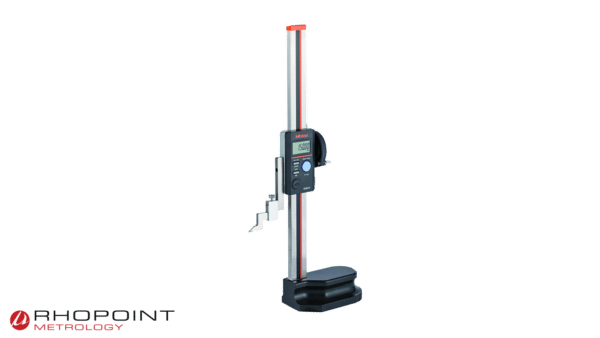

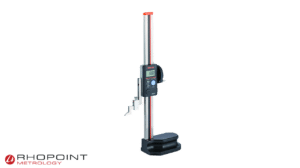

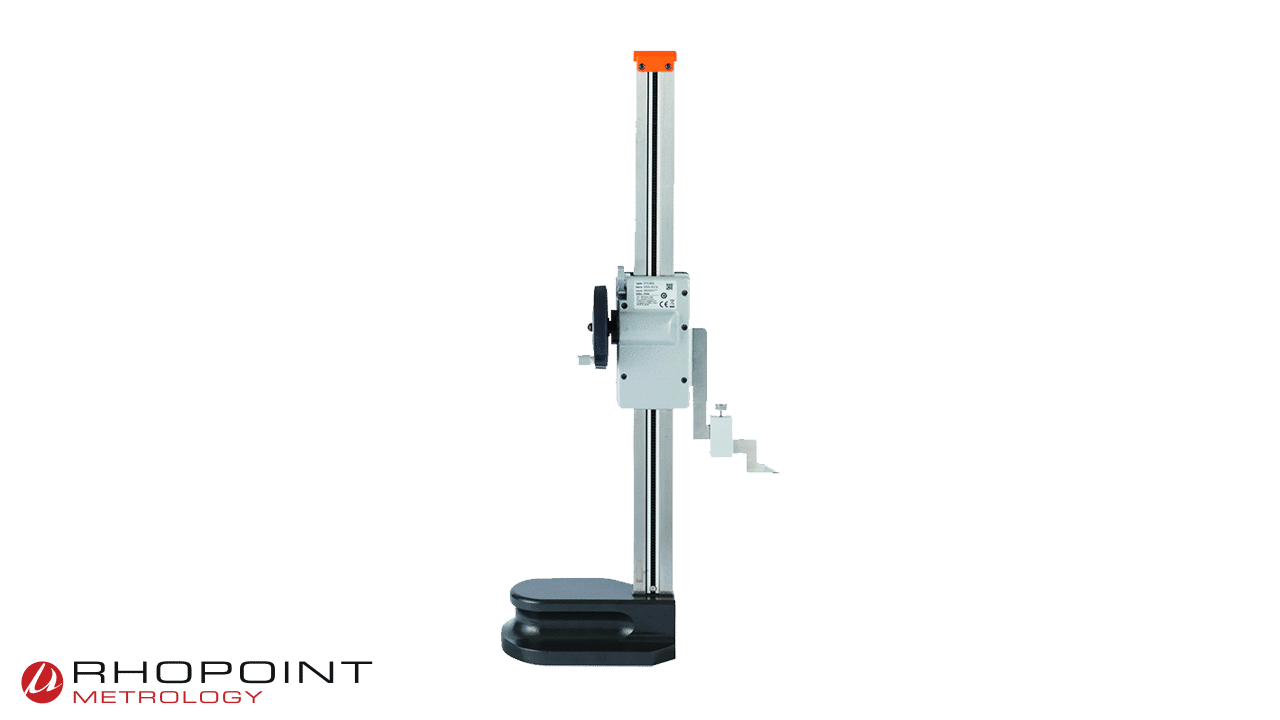

570-412Inch/Metric0 - 3000 - 12With handwheel£795.00

Add to Basket

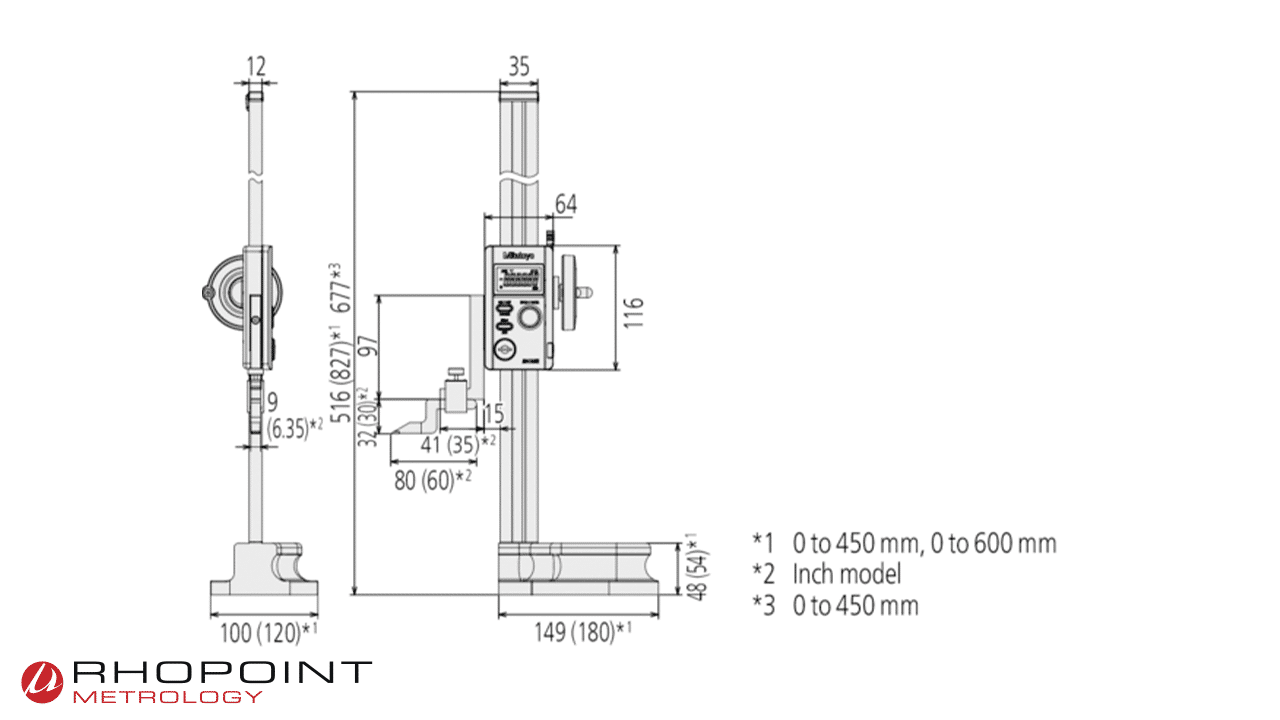

570-413Inch/Metric0 - 4500 - 18With handwheel£1,020.00

Add to Basket

570-414Inch/Metric0 - 6000 - 24With handwheel£1,100.00

Add to Basket

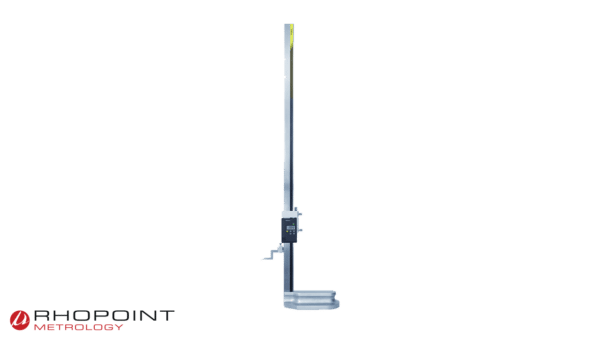

570-248Inch/Metric0 - 10000 - 40Without handwheel£2,710.00

Add to Basket

Prices in the above table do not include calibration.

Description

This Digimatic height gauge is very precise and reliable, and offers you the following benefits:

Its built-in ABSOLUTE linear encoder means you don‘t have to set the reference point at every power-on, improving reliability as over-speed errors cannot occur.
It comes with large and smooth-acting slider hand wheel
A carbide-tipped scriber is provided.
A large display and buttons for easy operability.

Specification

Weight 16800 g
Unit

,

Range (mm)

, , , ,

Range (inch)

, , , , ,

Feature

With handwheel, Without handwheel

Digital/Analog

Digital step

0.01 mm, 0.0005" / 0.01 mm

Max. Permissible Error E (mm)

±0.03 mm, ±0.05 mm, ±0.07 mm

Max. Permissible Error E (in)

±0.0015", ±0.002", ±0.003", ±0.03 mm

Fine adjustment

4 mm, 6 mm

Scale

ABSOLUTE capacitance type linear encoder

Display

Power supply

1 battery SR-44

Battery life

Approx. 5 years under normal use, Approx. 5000 hours

Mm / inch switching

Yes

Family

Calibration Code

, ,

Calibration Type
