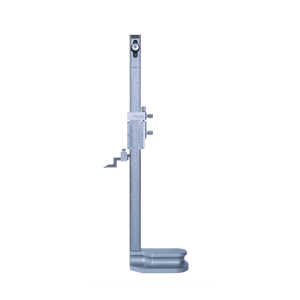

Mitutoyo vernier height gauge

Vernier Height Gauge Calibration

Calibrating your vernier height gauges at Rhopoint Metrology ensures precision and reliability in your measurements. Our expert technicians guarantee accurate calibration against ISO 17025 standards.

Regular calibration ensures compliance with industry regulations and enhances quality control efforts. Trusting us with your vernier height gauge calibration means ensuring consistent accuracy in your measurements, supporting precision manufacturing processes, and upholding the highest standards of quality assurance.

Rhopoint Metrology offers ISO 17025 certified calibration onsite or at our laboratories based in Birmingham and Bristol. Enquire now for pricing.

Vernier Height Gauge Calibration Services

Vernier Height Gauge

To Top
UKAS Calibration for Vernier Gauges (Inc Digital & Dial ) – Height – 300 mm (12″)UKAS
UKAS Calibration for Vernier Gauges (Inc Digital & Dial ) – Height – 450 mm (18″)UKAS
UKAS Calibration for Vernier Gauges (Inc Digital & Dial ) – Height – 600 mm (24″)UKAS
UKAS Calibration for Vernier Gauges (Inc Digital & Dial ) – Height – 900 mm (36″)UKAS
UKAS Calibration for Vernier Gauges (Inc Digital & Dial ) – Height – 1000 mm (40″)UKAS
Traceable Calibration for Vernier Gauges (Inc Digital & Dial ) – Height – 1200 mm (48″)Traceable

New Vernier Height Gauge instruments available to buy online today with UKAS calibration

Need assistance with your calibration?

If you haven’t found the calibration you require or need some further assistance with your requirement, contact us using this form and we can find the solution you are looking for.ย

To ensure we can promptly address your calibration enquiry, please complete the form with all the necessary details. This will help us to provide you with accurate and timely assistance.

For urgent enquiries, please contact us directly via phone at:

Vernier Height Gauges

BS1643 : 2008

This standard covers vernier height gauges which include a scriber for marking heights. Metric heightย gauges measure heights up to a maximum of 1000mm using a main scale and vernier scale graduatedย to read to 0.02mm. Imperial height gauges measure heights up to a maximum of 48โ€ using a mainย scale and vernier scale graduated to read to 0.001โ€. It may be uneconomical for any company or institution to invest in equipment to the level required in order to calibrate vernier height gauges fullyย in accordance with the standard.

It is highly recommended that an appropriate authority such as a UKAS approved laboratory carriesย out a full calibration on vernier height gauges at least once a year. In between UKAS calibrations at aย frequency based on usage, vernier height gauges should be calibrated in-house. A typical in-houseย calibration would include a written procedure and an associated calibration record sheet, which wouldย contain as a minimum, the following listed information:

  • Serial number
  • Location
  • Procedure number
  • Flatness of base
  • Flatness of measuring jaw
  • Parallelism of measuring jaw to datum surface
  • Flatness of measuring faces of the scriber
  • Parallelism of measuring faces of the scriber
  • Accuracy of readings
  • Results
  • Measurement uncertainty
  • Sentence if appropriate
  • Date and calibrators signature
  • 12 Traceability to National Standards

It is necessary that any person carrying out such calibration work should have received appropriateย training and have shown the ability to be confident via a suitable training authority. Training recordsย should be held and maintained.

UKAS Calibration

All of our Laboratories are accredited to provide UKAS & Traceable calibrations to all the relevant standards giving you peace of mind.

Benefits of Calibration

Accurate & Reliable

Make consistent, accurate and reliable measurements

Increase Product Life

Ensure longevity of the measuring instruments

Safety and Reliability

Ensure safety in critical applications such as medical and aerospace
