| SKU | Range (mm) | Price | ||
|---|---|---|---|---|
| H102 | 2.5 - 12.5 | £333.20 |
| |
| H105 | 5 - 15 | £333.20 |
| |
| H210 | 10 - 30 | £333.20 |
| |
| H415 | 15 - 65 | £383.40 |
| |
| H220 | 20 - 40 | £333.20 |
| |
| H230 | 30 - 50 | £333.20 |
| |
| H240 | 40 - 60 | £333.20 |
| |
| H440 | 40 - 90 | £383.40 |
| |
| H250 | 50 - 70 | £333.20 |
| |
| H850 | 50 - 150 | £723.50 |
| |
| H260 | 60 - 80 | £333.20 |
| |
| H270 | 70 - 90 | £333.20 |
| |
| H470 | 70 - 120 | £441.80 |
| |
| H870 | 70 - 170 | £723.50 |
| |
| H280 | 80 - 100 | £333.20 |
| |
| H1290 | 90 - 190 | £893.60 |
| |
| H4100 | 100 - 150 | £441.80 |
| |
| H4130 | 130 - 180 | £441.80 |
| |
| H4150 | 150 - 200 | £473.80 |
| |
| H12150 | 150 - 250 | £893.60 |
| |
| H16200 | 200 - 400 | £958.90 |
|
Prices in the above table do not include calibration.

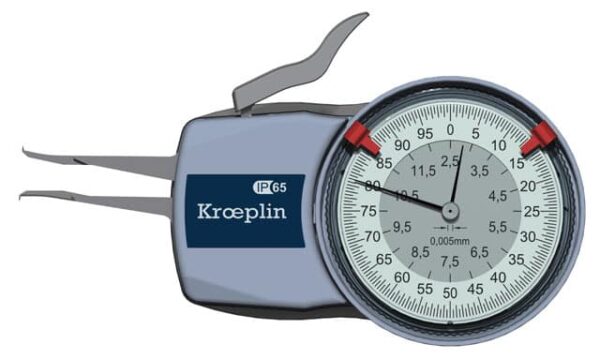

Analogue internal measuring gauge
Internal measurement
| Weight | 155 g |
|---|---|
| Range (mm) | 2.5 – 12.5, 5 – 15, 10 – 30, 15 – 65, 20 – 40, 30 – 50, 40 – 60, 40 – 90, 50 – 70, 50 – 150, 60 – 80, 70 – 90, 70 – 120, 70 – 170, 80 – 100, 90 – 190, 100 – 150, 130 – 180, 150 – 200, 150 – 250, 200 – 400 |
| Unit | |
| Measuring span (mm) | |
| Range of indication Azb (mm) | 99.5 – 150.5, 129.5 – 180.5, 14.8 – 65.5, 149 – 251, 149.5 – 200.5, 19.5 – 40.5, 199 – 401, 2.4 – 12.8, 29.5 – 50.5, 39.5 – 60.5, 39.5 – 90.5, 4.7 – 15.3, 49.5 – 150.5, 49.5 – 70.5, 59.5 – 80.5, 69.5 – 120.5, 69.5 – 170.5, 69.5 – 90.5, 79.5 – 100.5, 89 – 191, 9.5 – 30.5 |
| Scale interval Skw (mm) | 0.005, 0.01, 0.05, 0.1, 0.2 |
| Max. Permissible Error G (mm) | 0.015, 0.03, 0.05, 0.15, 0.3, 0.4 |
| Repeatability limit r (mm) | 0.005, 0.01, 0.025, 0.2 |
| Measuring force F min. (N) | 0.8, 1.1, 0.7, 0.9, 1.0 |
| Measuring force F max. (N) | 1.2, 1.6, 5, 2, 9 |
| Measuring contact fixed Hf (mm) | 0.9, 14, 2.5, 4.0, 5.3, 6.0, 7.3, 8.5 |
| Measuring depth max. L (mm) | 35, 85, 12, 188, 192, 395, 566, 746 |
| Reference temperature | 20 °C |
| Reference temperature range | 10 – 30 °C |
| Storage temperature | -10 – 50 °C |
| Protection |
