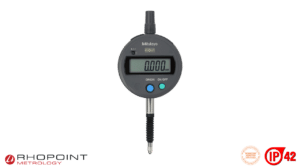

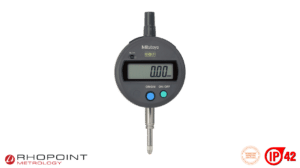

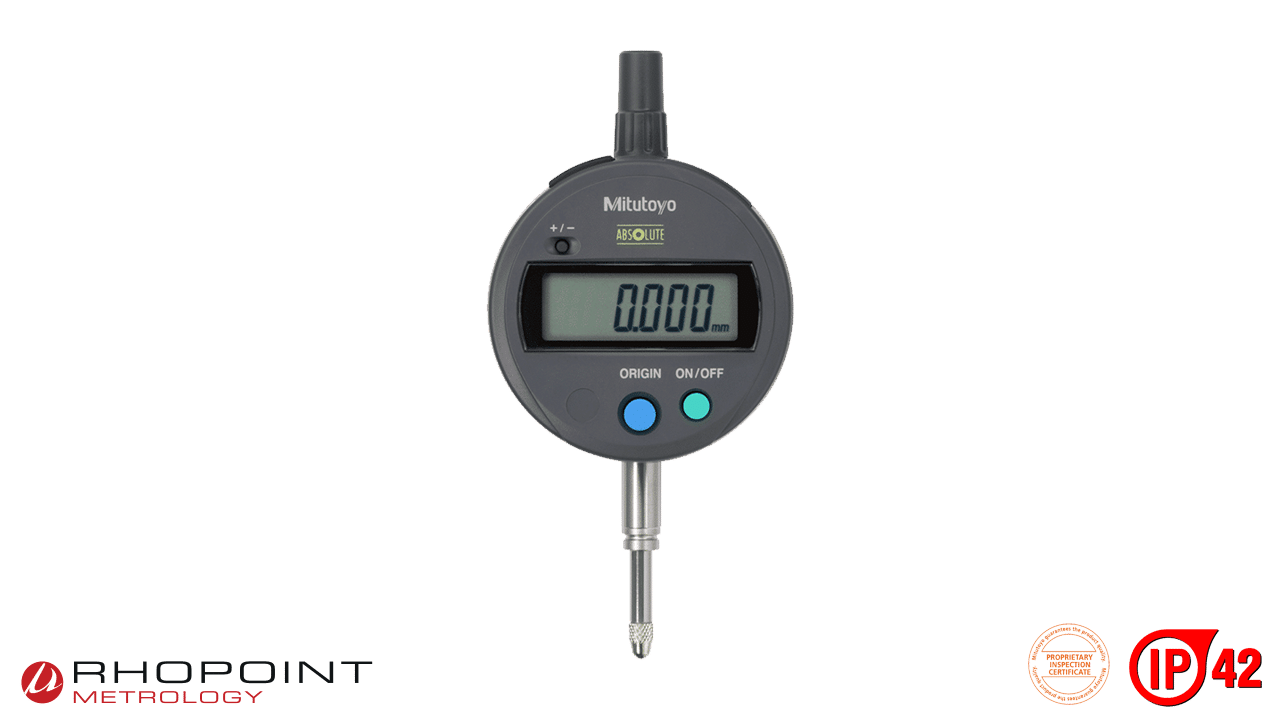

Mitutoyo Digital Indicator ID-S (Metric)

Any questions, contact us?

How to contact us

UKAS Calibration Lab

Why use Rhopoint

Frequently Asked Questions

FAQs

What can we calibrate?

Calibration disciplines

SKUUnitBackplateRange (mm)R MPE (Repeatability) (mm)Measuring forcePrice
543-781-10MetricLug0 - 12.70.01 mm≤ 1.5£154.00

Add to Basket

543-781B-10MetricFlat0 - 12.70.01 mm≤ 1.5£154.00

Add to Basket

543-790-10MetricLug0 - 12.70.002 mm≤ 1.5£306.00

Add to Basket

543-790B-10MetricFlat0 - 12.70.002 mm≤ 1.5£306.00

Add to Basket

543-794-10MetricLug0 - 12.70.002 mm≤ 2.5£329.00

Add to Basket

543-794B-10MetricFlat0 - 12.70.002 mm≤ 2.5£329.00

Add to Basket

Prices in the above table do not include calibration.

Description

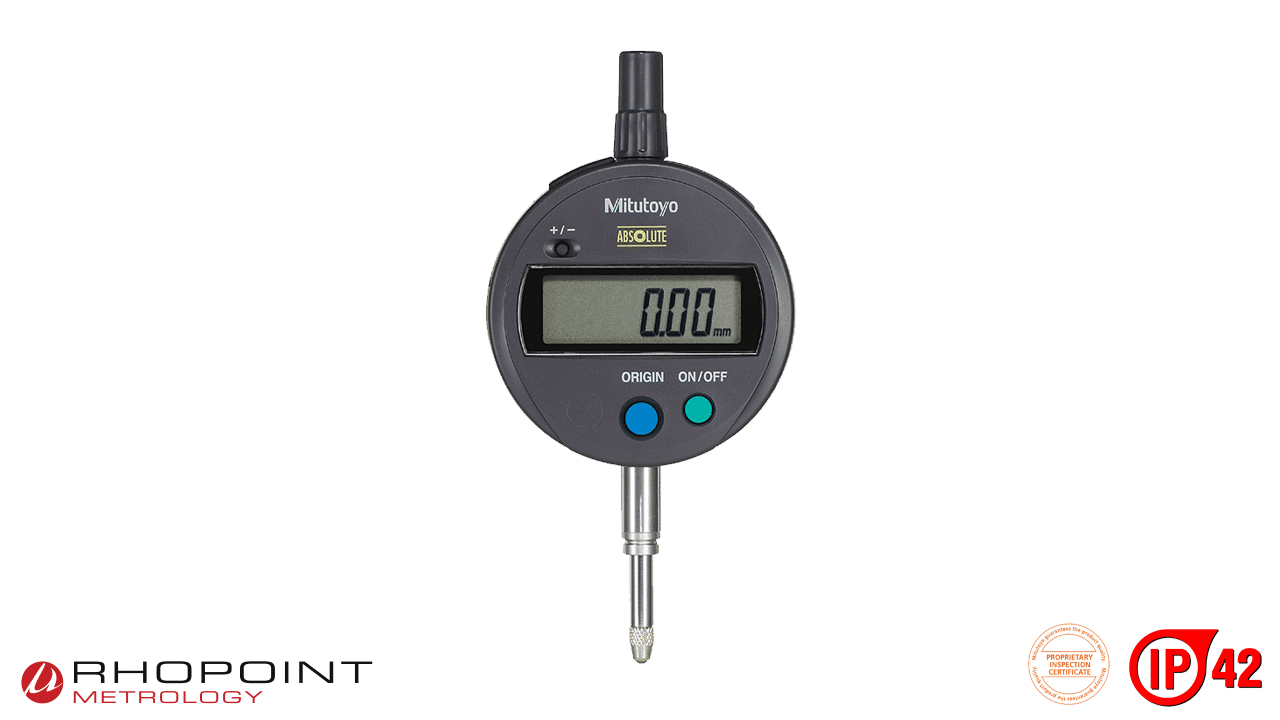

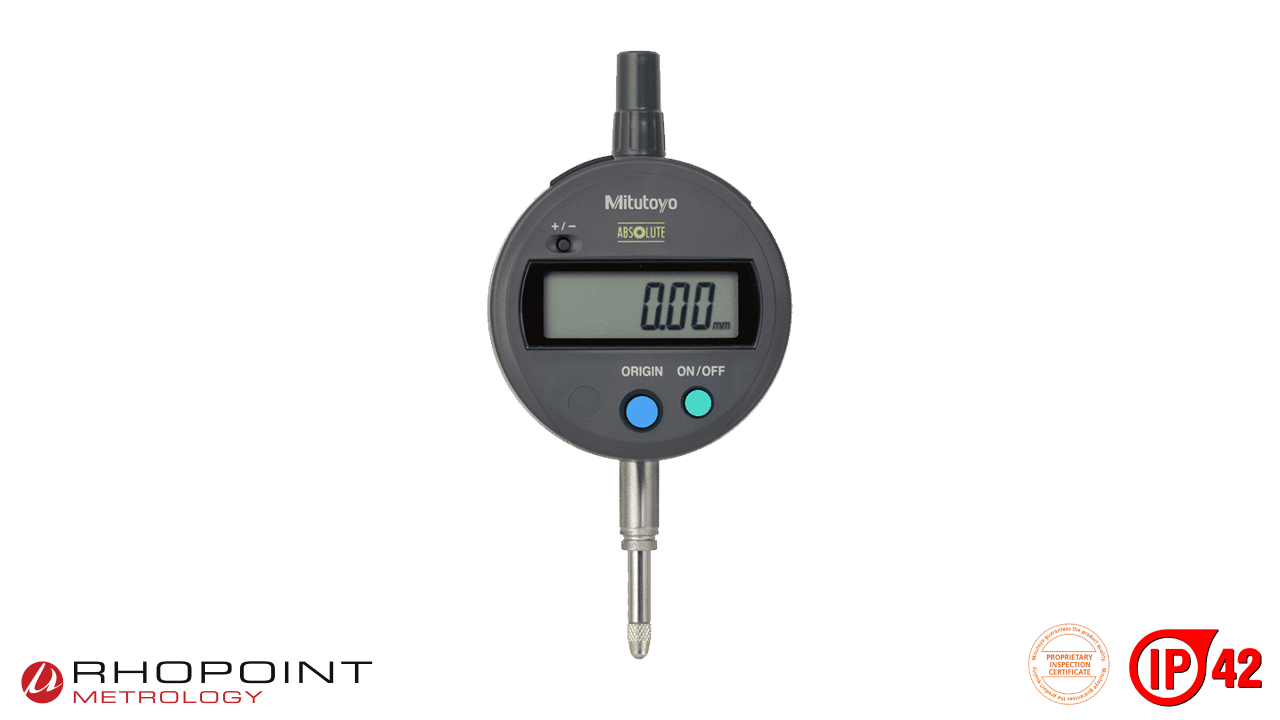

This is a standard model of indicator that is reliable and easy to use. The ABSOLUTE Digimatic Indicator ID-S offers you the following benefits: The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle. You can access all functions by using the large, user-friendly buttons on the front of the indicator. Large character height of 9 mm provides good readability. Exceptional battery life.

This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable (see optional accessory) the USB-ITPAK Software is required.

Specification

Weight 140 g
Family

Unit

Calibration Type

Indicator Type

Plunger Type

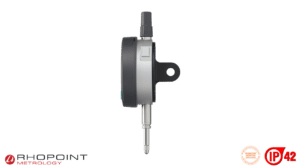

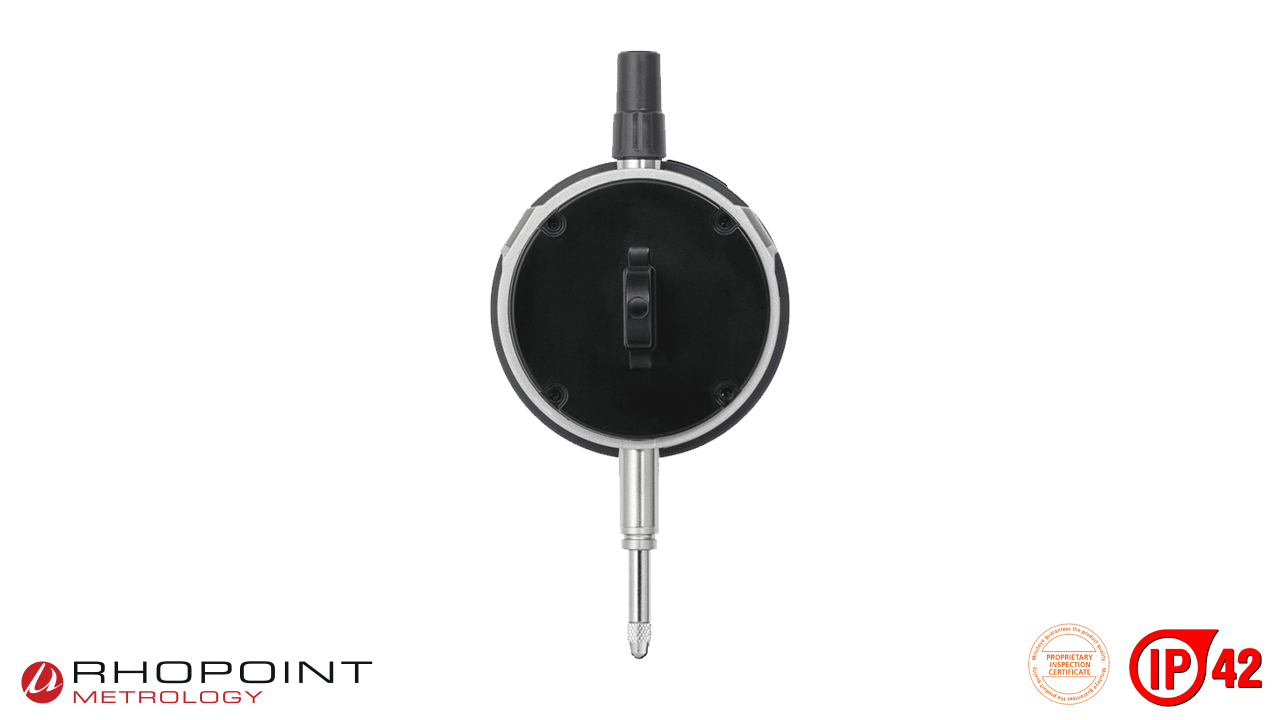

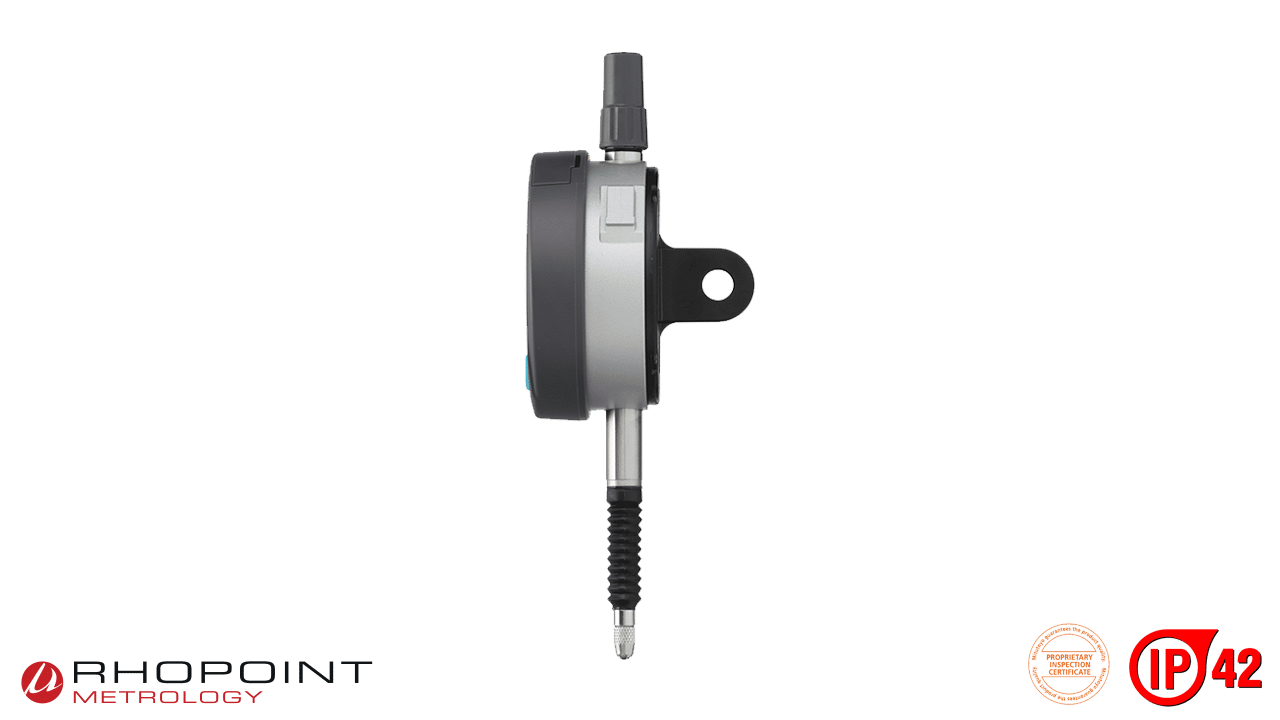

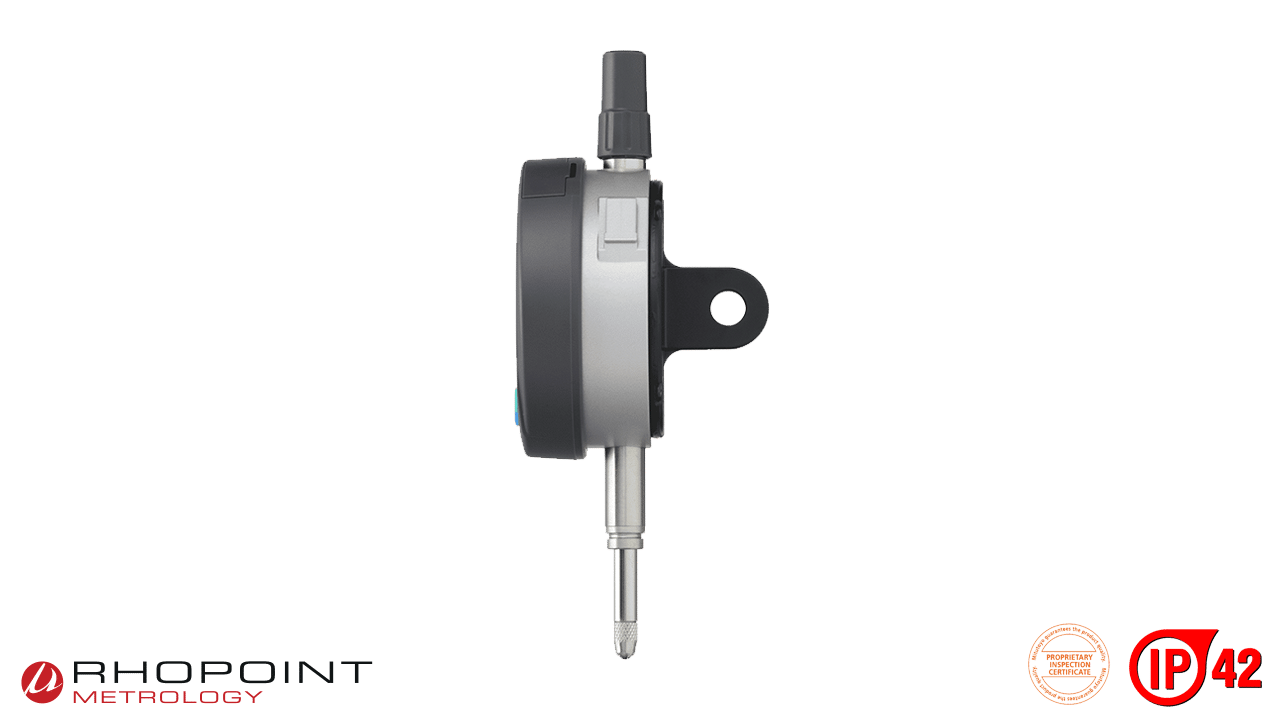

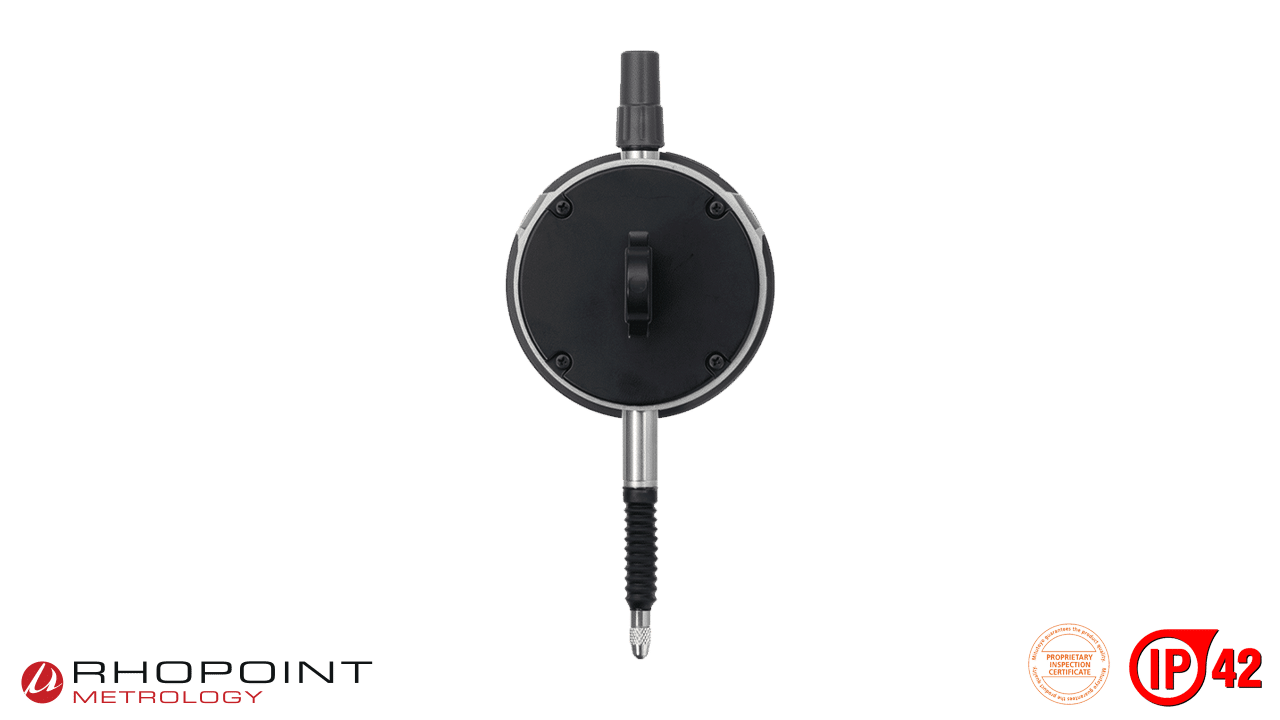

Backplate

Flat, Lug

Range (mm)

Graduation (mm)

,

Standard

Digital step (mm)

,

H MPE (Hysteresis) (mm)

0.002 mm, 0.02 mm

R MPE (Repeatability) (mm)

0.002 mm, 0.01 mm

Protection

,

Scale

Electrostatic capacitance type absolute linear encoder

Stem Ø (mm)

Digital/Analog

Alarm

Low voltage, sensor error, ABS data composition error

Battery life

Approx. 18000 hours (0.001 mm type), approx. 20000 hours (0.01 mm type)

Display

Contact point

Power supply

1 battery SR44

Measuring force

,
