£426.00 – £709.00
Calibration options available
SKU | Type | Range (mm) | Price | ||
---|---|---|---|---|---|
547-401A | D= 6.3 mm carbide tipped | 0 - 12 | £709.00 |
| |
547-313A | Adjustable Anvil | 0 - 10 | £449.00 |
| |

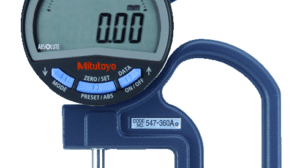

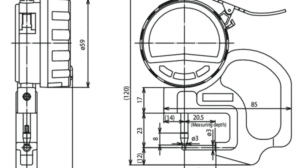

547-360A | Anvil D=3.5 mm, contact point D=3 mm | 0 - 10 | £426.00 |
|
Prices in the above table do not include calibration.

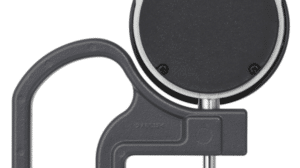

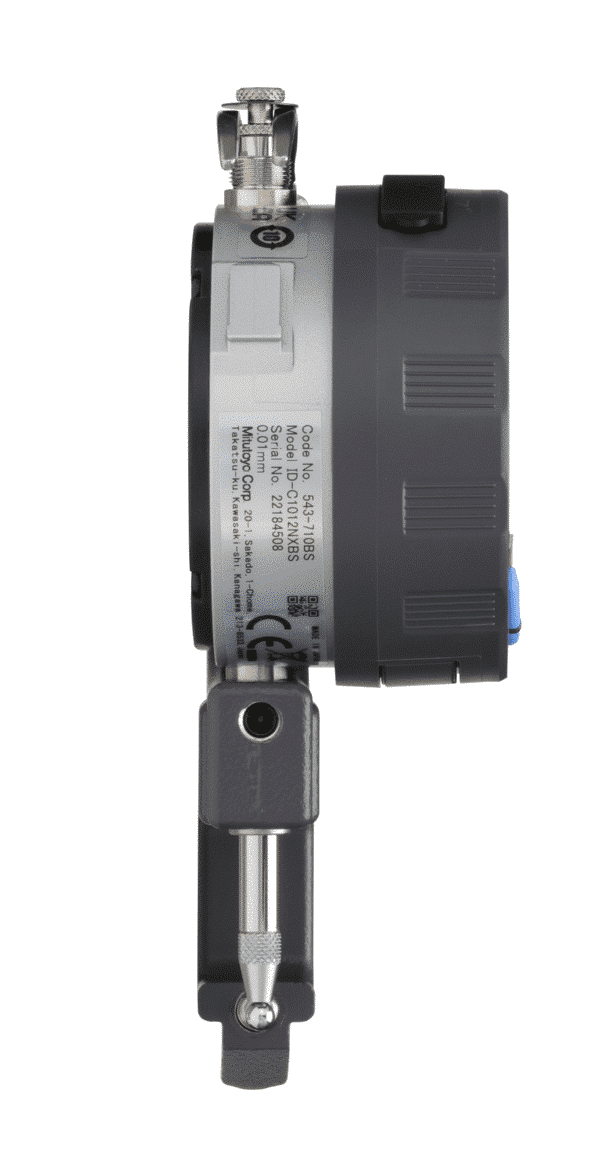

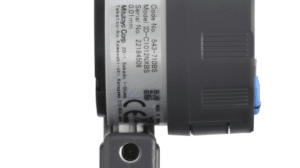

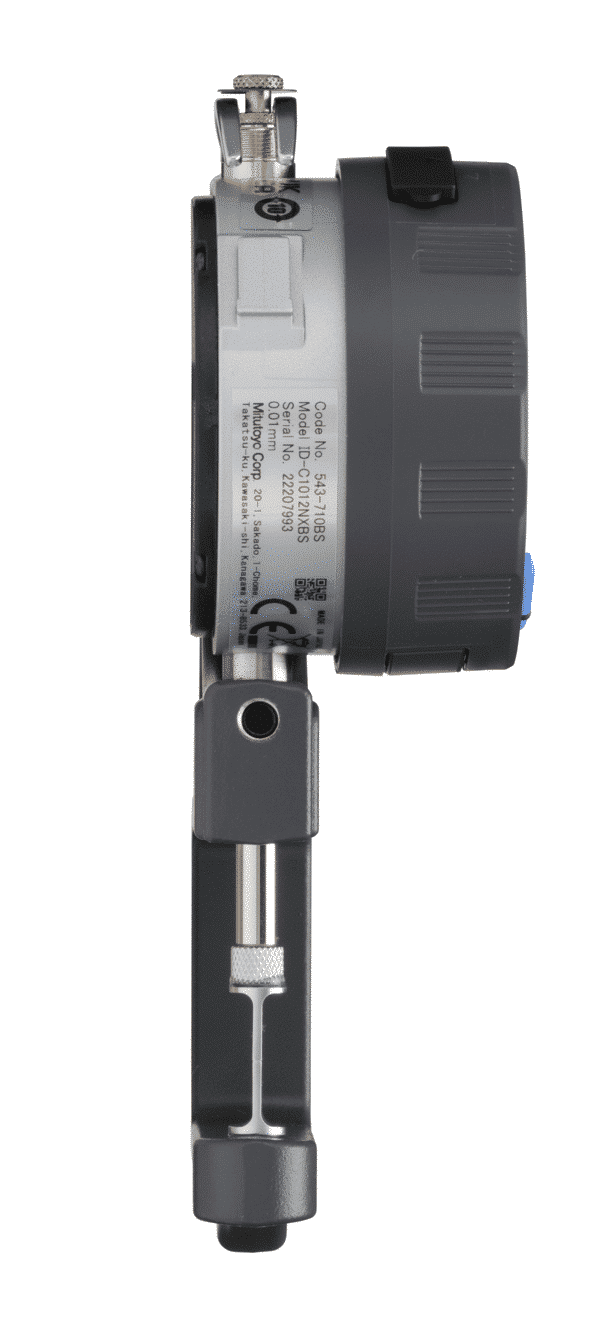

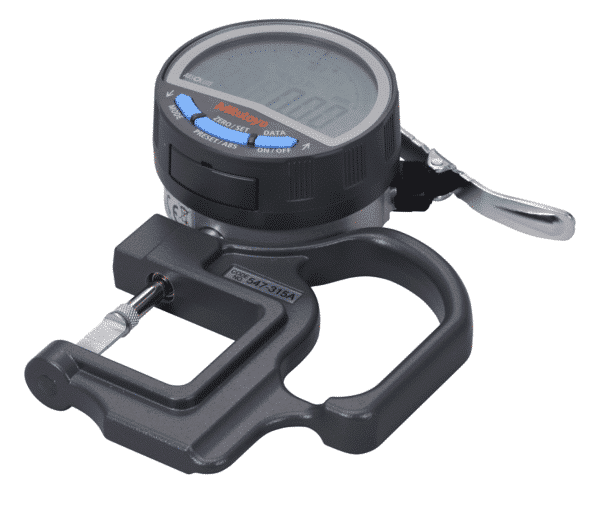

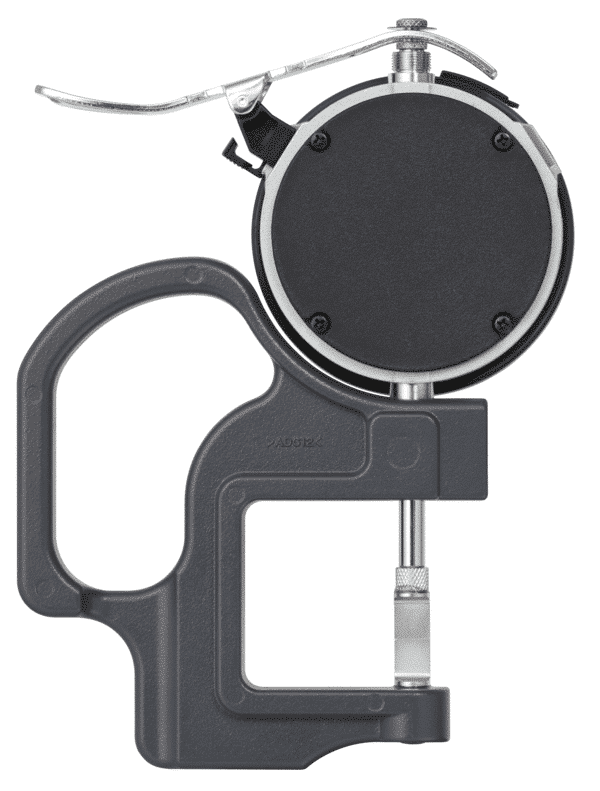

This ABSOLUTE Digimatic Thickness Gauge enables you to measure film, paper, etc., with flat contact points.
Weight | 260 g |
---|---|
Family | |
Unit | |
Calibration Type | |
Type | Adjustable Anvil, Anvil D=3.5 mm, contact point D=3 mm, Blade steel contact point, Ceramic disc contact points, Ceramic disc contact points and large jaw capacity, D= 6.3 mm carbide tipped |
Indicator Type | Thickness Gauge |
Range (mm) | |
Graduation (mm) | |
Feature | 543-710BS, With Indicator ID-C No. 543-700BS, With indicator ID-C No.543-710BS |
Digital step (mm) | |
Digital step switchable | No |

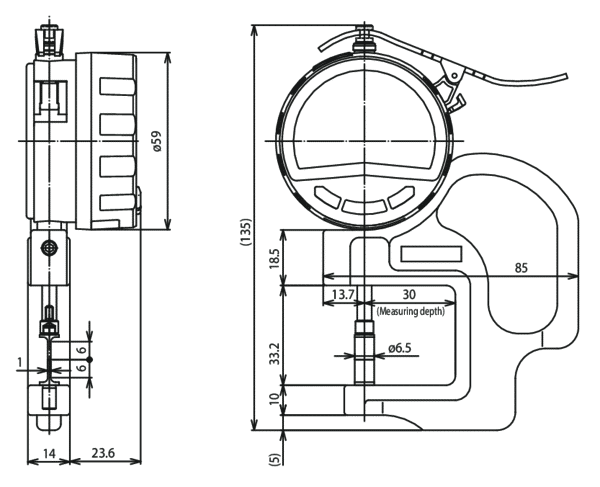

Max. measuring depth | 120 mm, 30 mm, 20.5 mm, 21 mm |
R MPE (Repeatability) (mm) | 0.002 mm, 0.01 mm |
R MPE (Repeatability) (inch) | 0.0005" |
Protection | |
Scale | Electrostatic capacitance type absolute linear encoder |
Indicator No. | |
Digital/Analog | |
Alarm | Low voltage, setting errors, sensor error, display overflow a.s.o. |
Display | |
Power supply | 1 battery CR2032 (3V) |
Parallelism (mm) | 0.01 mm |
